What is dbt (data build tool) and how it works

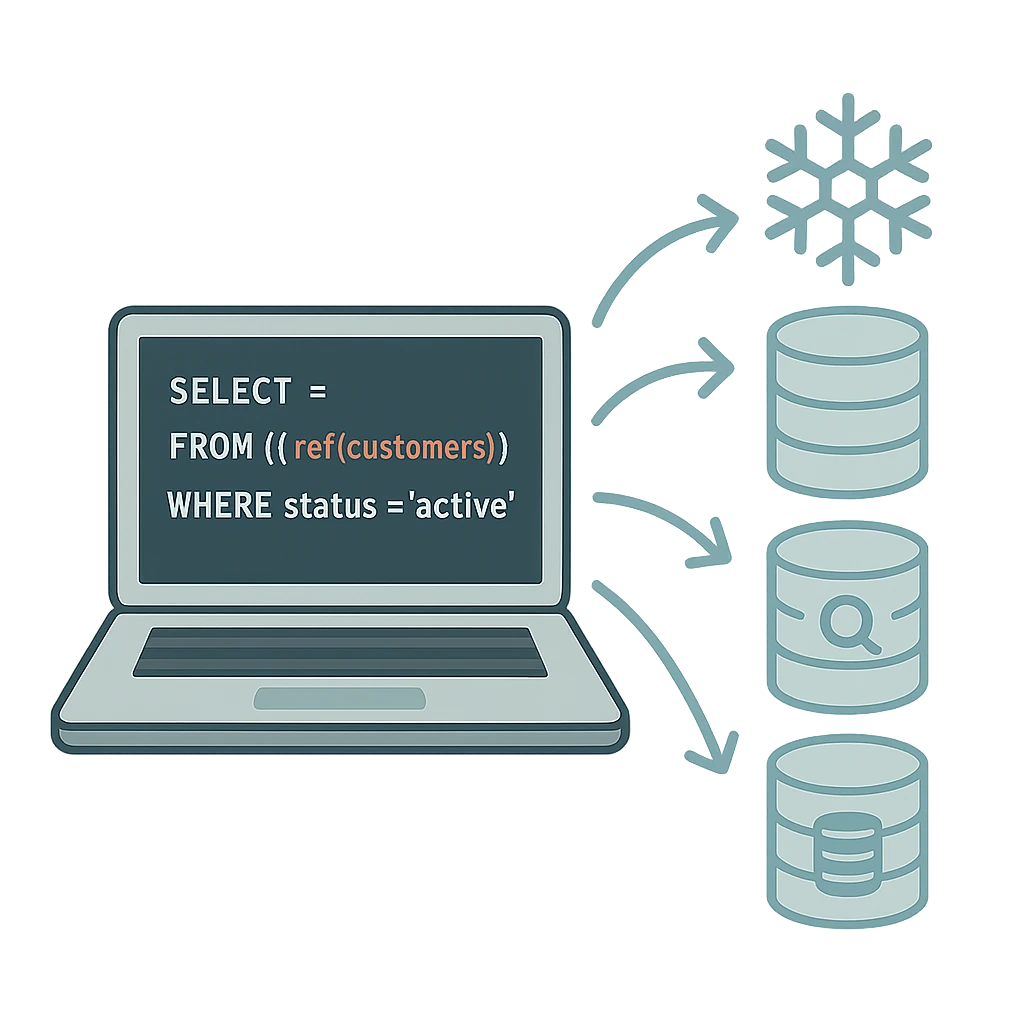

dbt (data build tool) lets data teams transform warehouse data with clean, version‑controlled SQL. It is a smart SQL compiler and scheduler: you write modular queries, and dbt tells the warehouse what to run and in which order.



How dbt Works

dbt uses Jinja2 (a Python templating engine) to turn .sql files containing dynamic directives ({{ }} and {% %}) into plain SQL. Example template:

SELECT *
FROM {{ ref('customers') }}
WHERE status = 'active'

Compiles to:

SELECT *
FROM my_schema.customers
WHERE status = 'active'

dbt then sends the SQL to your warehouse or query engine (Snowflake, BigQuery, Redshift, Athena, Databricks, etc.). It doesn’t execute SQL itself—it orchestrates execution order, builds dynamic SQL, manages metadata, tests and docs.



Typical Project Layout

my_dbt_project/
│
├── dbt_project.yml   # Main project config
│
├── models/           # SQL transformations
│   ├── staging/      # Near‑source staging models
│   ├── marts/        # Business or metric models
│   └── ...           # Extra layers (intermediate, core, etc.)
│
├── macros/           # Re‑usable Jinja functions
├── seeds/            # CSVs loadable as tables
├── snapshots/        # Historical change tracking
├── tests/            # Custom or extra tests
└── target/           # Generated artefacts (compiled SQL, logs, docs)



File / Folder	Purpose
dbt_project.yml	Structure, global vars, defaults, paths
profiles.yml	Warehouse connection (user, DB, schema, etc.)
models/	SQL defining transformations
macros/	Re‑usable SQL functions in Jinja
seeds/	CSVs promoted to tables (catalogues, fixtures, tests)
snapshots/	Historical data capture
tests/	Custom SQL tests
target/	Compiled SQL, logs, HTML docs, manifests



Execution Flow

1. Command – you run dbt run (or dbt build, test, docs generate, etc.).
2. Config & Profiles – dbt reads dbt_project.yml and profiles.yml.
3. Parse Models – it scans models/, builds a dependency graph (DAG).
4. Template Render – Jinja replaces {{ }} / {% %} expressions using:
   • Variables
   • User macros (/macros)
   • Native functions (ref(), source(), config(), …)
5. Order Determination – respects dependencies (A → B → C). Independent branches run in parallel.
6. Execution – submits compiled SQL to the warehouse in the correct order.



Summary

dbt makes it simple to develop SQL‑centric pipelines:

• DAG‑aware dependencies, automated tests and rich documentation.
• Works with cloud‑native warehouses like Snowflake, BigQuery, Redshift, Athena, Databricks SQL.
• Integrates smoothly with Git, CI/CD and orchestrators such as Airflow or Prefect.
